Footing For Flanged Lighting Column
NOMINAL COLUMN HEIGHT (H)

FOOTING SIZE (mm)

B1 X B2 X D*(mm)

J-BOLT (mm)

Nos Sizes/L, BOLT
3.5M 400 x 400 x 800 4 M20 / 450
6M 400 x 400 x 1000 4 M20 / 450
8M 500 x 500 x 1100 4 M20 / 450

*Precase RC Foundation

1. Concrete Grade of C35 2. Concrete Cover Of 45mm Min

General Notes

  1. Concrete Grade = 35 N/mm2
  2. Steel Grade = B 500 B
  3. Min Concrete Cover  = 40mm
  4. Weight = 1.44 ton

Side View Of Lamp Post RC Footing For 6.0M Lighting Pole (Flanged)

M20 J-Bolt

RC Footing Top View

Elevation Of Lamp Post (Part)

Flange Plate

2T10 (Lifting Hook)

Section A-A

Scale 1:20

Section B-B

Scale 1:20

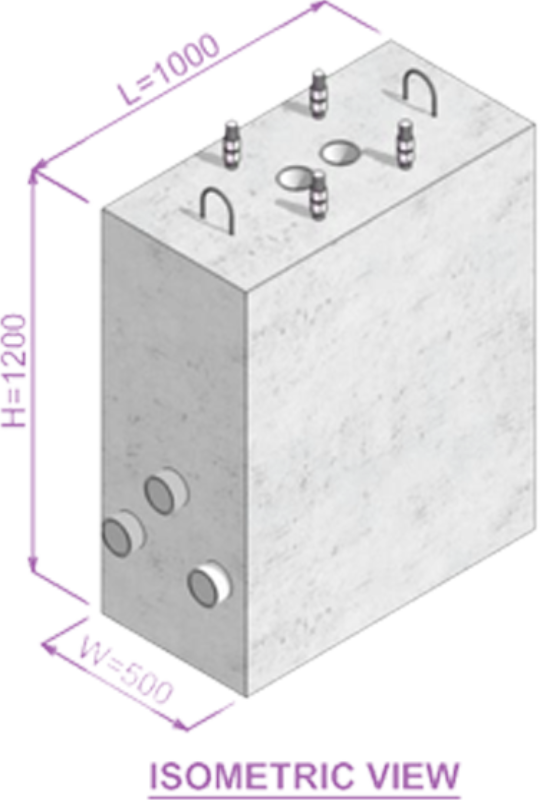

Isometric View
